Liander load shape — trefoil Al XLPE

Script: examples/seasonal_liander_trefoil_al.py

A full-year transient for three single-core 240 mm² Al XLPE cables in touching trefoil, driven by 15-minute operational load data from Liander’s open dataset (bundled as examples/data/OS_Apeldoorn.csv). The CSV values are not amperes; the script maps their magnitude to a plausible phase-current band for illustration.

Setup

  • Cables: 3 × 1 × 240 mm² Al XLPE, 20 kV, balanced same current

  • Geometry: Trefoil (touching), centroid burial depth 1.2 m

  • Load: Liander station-installation series (OS Apeldoorn sample), scaled to roughly 80–360 A per phase (tunable via I_PEAK_A / I_MIN_A)

  • Ground temperature: Kasuda model tuned for the Netherlands (mean ~10.7 °C, annual amplitude ~10.5 °C)

  • Time step: 900 s (15 min), matching the CSV

What it demonstrates

  1. Building a LoadProfile from a real-world time series (datetime CSV + forward-fill for sparse DST rows)

  2. Year-long transients with quarter-hour resolution

  3. Trefoil mutual heating with aluminium conductors and seasonal soil temperature

Data and licence

The sample CSV is from Liander open data — historische 15-minuten bedrijfsmetingen. Use is subject to Liander’s disclaimer; the trace reflects aggregated substation behaviour, not a single feeder.

Output files

  • seasonal_liander_trefoil_al_temperatures.png — temperature and current history (regenerate by running the script; a copy is kept under docs/_static/examples/ for the documentation build).

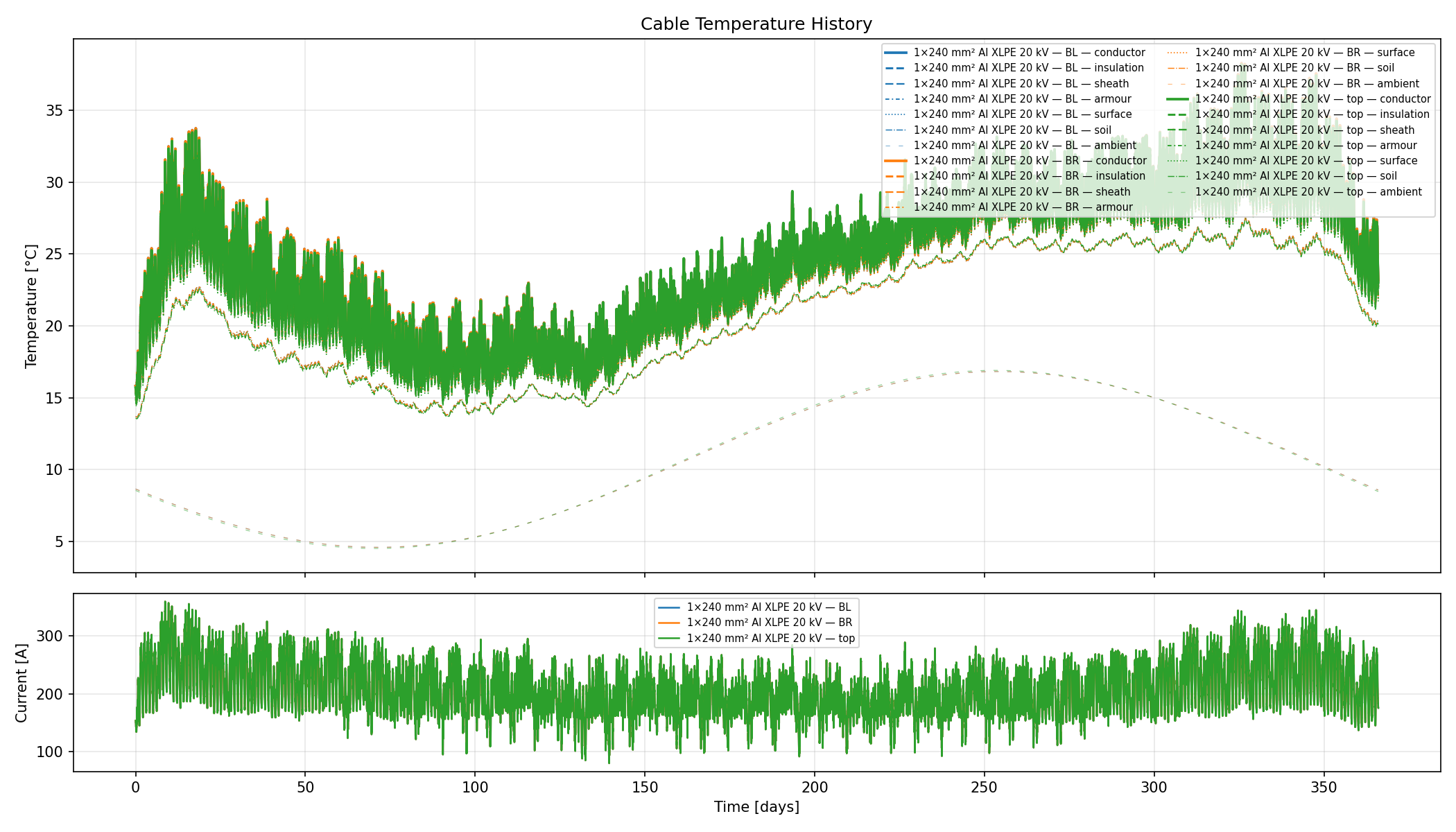

Year-long cable temperatures and load current from the Liander-scaled example

Temperature and current history produced by examples/seasonal_liander_trefoil_al.py.
